FEATURES

Grass paver offers several unique features incorporating

• More than 90% unrestricted root base area
• 40mm high cells that enhance vigorous root development
• Notches in cells that allow unrestricted runner and root growth.
• Secure snap-on joining ensuring modules remain in place after installation.
• Ability to peg the sub-base on slopes and curves
• Vertical webs that direct roots downward minimizing girdling

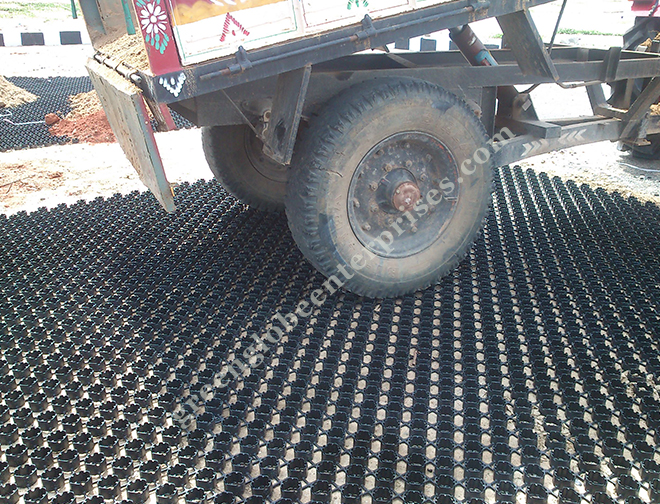

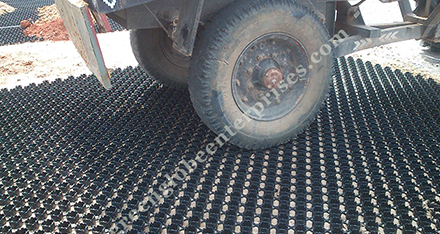

• High compressive strength.
• Flexible connecting grids ensuring modules conform to uneven surfaces.
• Snap-on joining allowing large panels to be pre-assembled off-site.
• Modules that allow rapid installation with minimal operator training and tools
• Nesting design that halves storage and transport costs

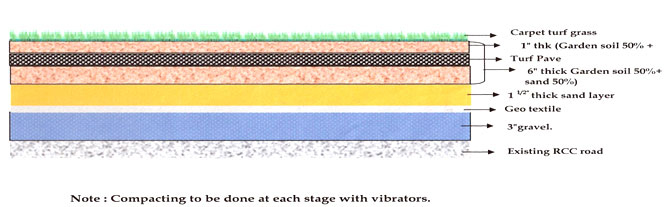

TYPICAL DETAILS

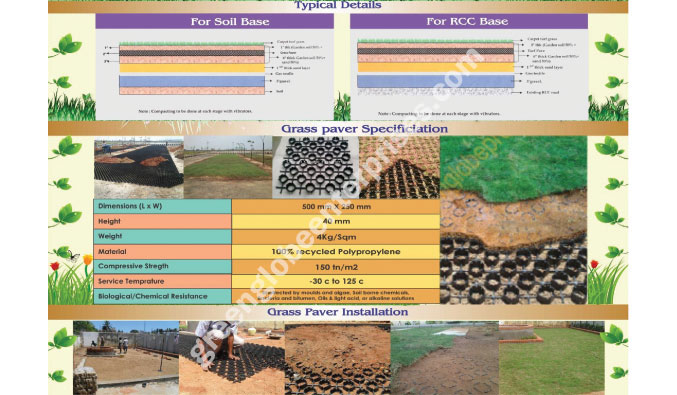

GRASS PAVER - SPECIFICATION

APPLICATION AREAS

Grass pavers stabilize turf, grass and gravel in:

• Emergency and fire lane access areas

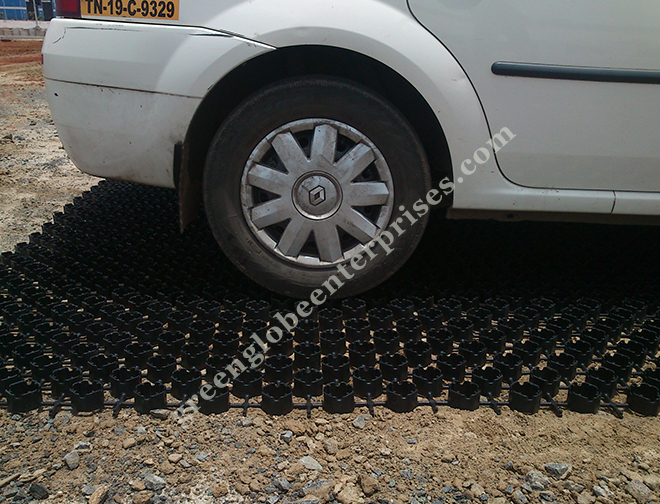

• Vehicle parking lots in commercial developments, homes, sports complexes, festival grounds, churches and spaces for the handicapped
• Golf cart paths.
• Street shoulder parking.
• Racetrack infield and pit areas.
• Drainage channels
• Slope stabilization and erosion control

INSTALLATION

Grass pavers are easily assembled requiring no special tools. The product conforms to odd shapes or profiles, and excess cells may be trimmed with simple cutting tools.

• Prior to installation, calculate the area where Grass pavers is to be installed
• Install drainage systems, irrigation systems, and utility lines in the sub-grade,as needed
• Lay and compact a 2-10 mm gravel road base or washed paving sand to provide support for projected weight-bearing loads

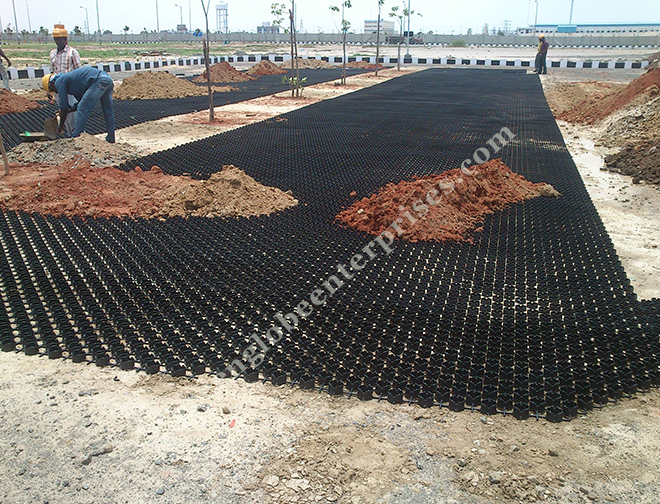

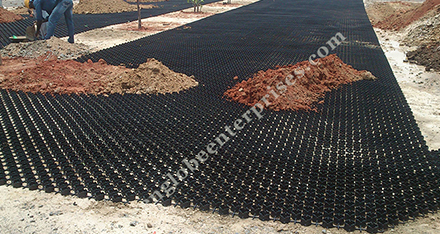

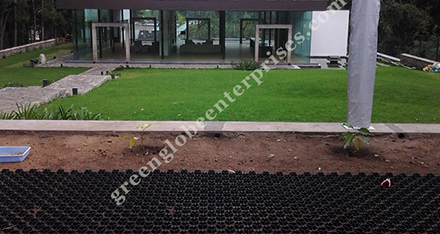

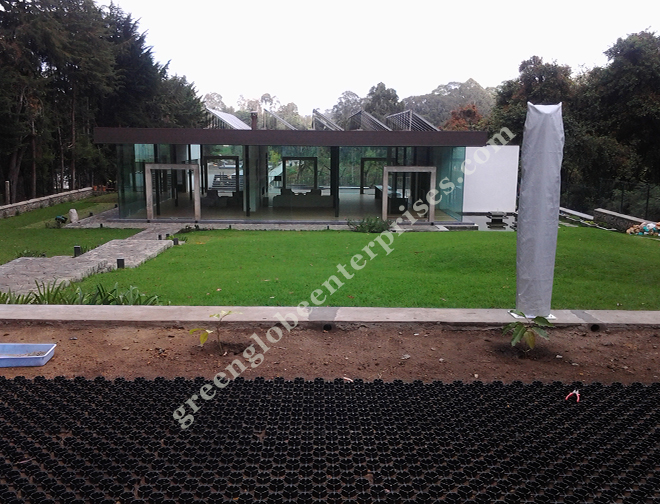

• Position Grass cells on the compacted gravel road base or paving sand
• Cover the pavers cells with a recommended sand soil mix for turf establishment
• Apply recommended moisture, water retention agents and fertilizers
• Place sprigging or rolled turf, or hydro-seed onto the filled cells
• Implement regular maintenance schedules

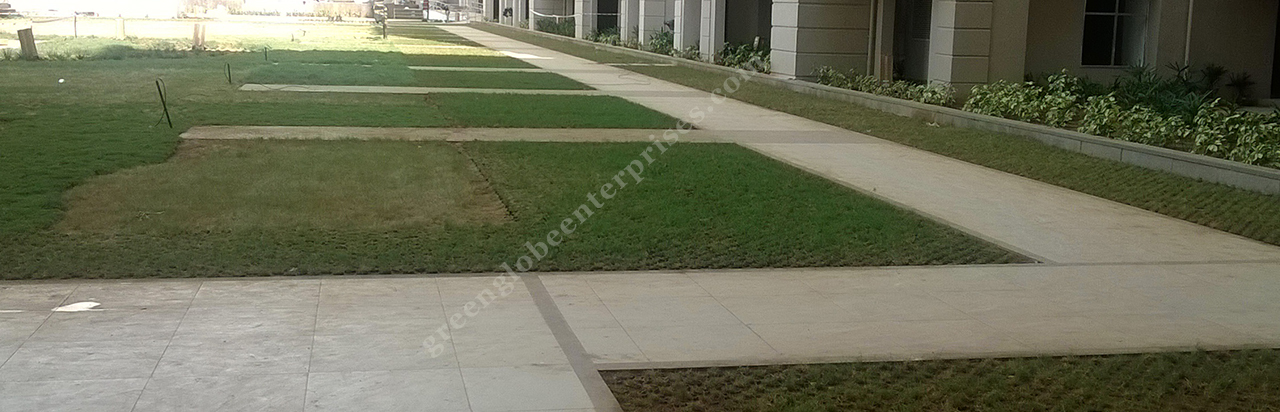

Areas incorporating grass pavers offer benefits including:

• Stabilized turf surfaces protected against erosion
• Pleasant alternatives to asphalt and concrete surfaces
• Groundwater recharge.
• Enhanced site appearance through "green" vegetation.
• Reduced need for storm water conveyances and treatment systems.
• Minimized storm water run-off
• High water permeability
• Increased effective utilizable area
